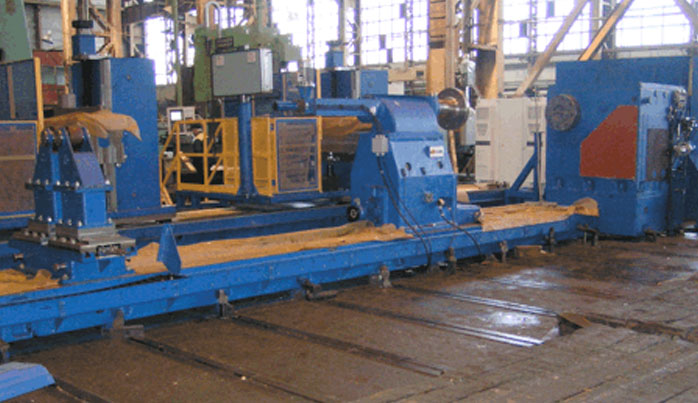

High efficient special lathe&milling machining center KU695 is intended for processing of the light-gauge cylindrical parts from glass fiber plastic and other composite materials.
This machining center is equipped with SIEMENS or NCT NC system with the possibility to process workpieces in automatic cycle.
By means of two carriages machining center can perform the following operations:
- processing of axial and radial bores in automatic cycles;
- external lathe work both on the parts and on the whole surface of the wokpiece along its full length (while processing without back-rests), including end-face processing;
- milling of ports in the workpieces at any distance from the end-face.
|
Specification |
Unit Value |
|
Maximal diameter of workpiece (external), mm |
2 150 |
|
Minimal diameter of workpiece (internal), mm |
500 |
|
Main spindle range of speeds, rpm |
2…150 |
|
Maximal length of the workpiece, mm |
9 000 |
|
Minimal length of the workpiece (defined by the min. value of head and tail stocks approach), mm |
1 180 |
|
Maximal weight of workpiece, kg |
5 000 |
|
Maximal distance between special faceplates, mm |
9 100 |
|
Minimal distance between axis of radial tools (convergence of carriages), mm |
2400 |
|
Carriages number, pcs |
2 |
|
Controlled coordinates number, pcs |
7 |
|
Number of simultaneously controlled coordinates, pcs |
4 |
|
Linear positioning resolution, micron |
1 |
|
Rotary positioning resolution, degrees |
0.001 |
|
Linear federates , mm/min |
1…4 000 |
|
Rotary feedrates, deg./min |
1…1 000 |
|
Vertical strokes of the carriages, mm |
±200 |
|
Number of turrets with automatic tool position change, pcs |
2 |
|
Number of tool positions in turret, pcs |
12 |
|
Number of driven tool positions in the turret, pcs |
2 |
|
Spindle bore diameter for cutter type tools, mm |
32 |
|
Maximal diameter of the mounted milling tool, mm |
50 |
|
Range of rotation speeds of axial tool (continuous rating), rpm |
150…900 |
|
Main drive motor power, kW |
35 |
|
Machining center dimensions (LWH), mm |
21 000 х 8 900 х 3 100 |
|
Approximate net weight of the machining center, kg |
52 000 |
